Virtual diffractometer axis#

Demonstrate a diffractometer where one of the expected axes must be computed from one or more additional diffractometer positioners.

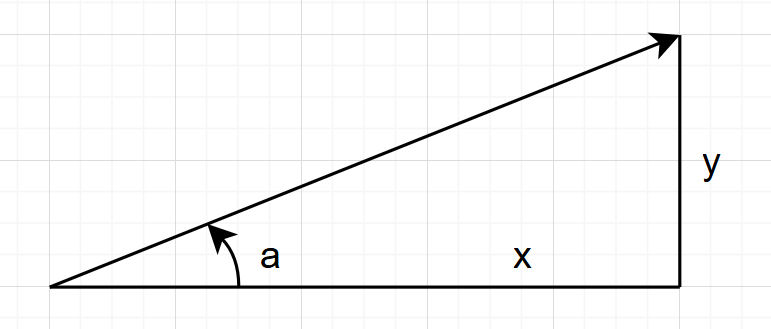

One case might be where a rotational axis $a$ is operated by a tangent linear translation $y$ at fixed distance $x$ from the center of rotation. In this simple sketch, the relationships are defined: $\tan{a} = y / x$

sketch

Preparation#

The virtual axis must be defined with the features common to the other diffractometer axes (all based on ophyd.PositionerBase).

Since this is a virtual real axis and not a pseudo, the easiest way to ensure these features are available is to create a subclass of ophyd.SoftPositioner (based on ophyd.PositionerBase) and override the parts which are custom to the virtual axis. A virtual pseudo axis should subclass from hklpy2.Hklpy2PseudoAxis.

The ophyd.DerivedSignal is not based on ophyd.PositionerBase and, as such, is missing many features of the positioner interface.

Parameters

$x$ : A constant specified when creating the diffractometer object. Same engineering units as $y$.
$y$ : The physical translation axis. Specify the name of this diffractometer Component when creating the diffractometer object. The virtual positioner class will access the named diffractometer Component.
$a$ : The virtual rotation angle. When $a$ is read, its position is computed from $y$. Any movement of $a$ is translated into a movement of $y$.

Virtual positioner class#

Using hklpy2.misc.VirtualPositionerBase as a base class, create the custom class for the specifications of tth, our virtual rotation axis. Here, we override these methods:

__init__() : $x$ - Add additional distance keyword argument.
forward() : Compute $a$ from $y$.
inverse() : Compute $y$ from $a$.

import math
from hklpy2.misc import VirtualPositionerBase


class VirtualRotationPositioner(VirtualPositionerBase):
    """Compute virtual rotation from physical translation axis."""

    def __init__(self, *, distance: float = 100, **kwargs):
        """Distance from translation axis zero position to center of rotation."""
        self.distance = distance  # same units as physical
        super().__init__(**kwargs)

    def forward(self, translation: float) -> float:
        """Return virtual rotation angle (degrees) from physical translation."""
        return math.atan2(translation, self.distance) * 180 / math.pi

    def inverse(self, rotation: float) -> float:
        """Return physical translation from virtual rotation angle (degrees)."""
        return self.distance * math.tan(rotation * math.pi / 180)

Custom diffractometer class#

Here, we pick the 4-circle E4CV geometry to demonstrate a diffractometer that uses this new VirtualRotationPositioner class.

tth (as $a$): Override the existing tth Component with the VirtualRotationPositioner, supplying the additional kwargs.
dy (as $y$): Add a dy Component as a SoftPositioner, supplying initial position and limits.
distance (as $x$): Pass this constant as a keyword argument when constructing the diffractometer object.

Note the kind="hinted" kwarg, which designates a Component to be included in a live table or plot during a scan.

Why not use hklpy2.creator()?

We must write our own Python class. The hklpy2.creator() is not prepared yet to create a diffractometer with a custom class and keyword arguments such as this one.

Maybe, in the future ...

gonio = hklpy2.creator(
    name="gonio",
    solver="hkl_soleil",
    geometry="E4CV",
    reals = {
        omega: None,
        chi: None,
        phi: None,
        tth: {
            "class": "VirtualRotationPositioner",
            "init_pos": 0,
            "physical_name": "dy",
            "distance": 1000,
            "kind": "hinted",
        },
        dy: {
            "limits": (-10, 200),
            # all other kwargs use defaults
        }
    }
)

But we still need to add some code in the __init__() method.

Using the factory function to create a base class, we define a custom class:

import hklpy2
from ophyd import Component, SoftPositioner

MyBase = hklpy2.diffractometer_class_factory(
    solver="hkl_soleil",
    geometry="E4CV",
)


class MyGoniometer(MyBase):
    # Replace existing axis with virtual 2Theta.
    # Point it at the 'dy' axis (below).
    tth = Component(
        VirtualRotationPositioner,
        init_pos=0,
        physical_name="dy",
        distance=1000,
        kind="hinted",
    )

    # Add the translation axis 'dy'.
    dy = Component(
        SoftPositioner,
        init_pos=0,
        limits=(-10, 200),
        kind="hinted",
    )

    def __init__(self, *args, **kwargs):
        super().__init__(*args, **kwargs)
        self.tth._finish_setup()

Diffractometer object#

Move dy (physical axis), report tth and l at each step.
Move tth (virtual axis), report dy and l at each step.
Move l (pseudo axis), report tth and dy at each step.

gonio = MyGoniometer(name="gonio")
gonio.add_sample("vibranium", 2*math.pi)
gonio.wh()

wavelength=1.0
pseudos: h=0, k=0, l=0
reals: omega=0, chi=0, phi=0, tth=0
auxiliaries: dy=0

Bluesky scans#

Demonstrate the relationships between dy, tth, and l through bluesky scans.

Scan dy (physical axis), report tth and l at each step.
Scan tth (virtual axis), report dy and l at each step.
Scan l (pseudo axis), report tth and dy at each step.

Start with a simple setup, but no detectors or data collection. Just tables and plotting.

import bluesky
from bluesky import plans as bp
from bluesky.callbacks.best_effort import BestEffortCallback

bec = BestEffortCallback()
RE = bluesky.RunEngine()
RE.subscribe(bec)
bec.disable_plots()

Scan physical axis `dy`#

RE(bp.scan([gonio.dy, gonio.tth, gonio.l], gonio.dy, -1, 10, 11))
gonio.wh()

Transient Scan ID: 1     Time: 2025-07-21 15:06:10
Persistent Unique Scan ID: '288c4df3-b7e6-4439-a653-e051e6d3b2b6'
New stream: 'primary'
+-----------+------------+------------+------------+------------+
|   seq_num |       time |   gonio_dy |    gonio_l |  gonio_tth |
+-----------+------------+------------+------------+------------+
|         1 | 15:06:10.3 |     -1.000 |     -0.006 |     -0.057 |
|         2 | 15:06:10.3 |      0.100 |      0.001 |      0.006 |
|         3 | 15:06:10.3 |      1.200 |      0.008 |      0.069 |
|         4 | 15:06:10.3 |      2.300 |      0.014 |      0.132 |
|         5 | 15:06:10.3 |      3.400 |      0.021 |      0.195 |
|         6 | 15:06:10.3 |      4.500 |      0.028 |      0.258 |
|         7 | 15:06:10.3 |      5.600 |      0.035 |      0.321 |
|         8 | 15:06:10.3 |      6.700 |      0.042 |      0.384 |
|         9 | 15:06:10.3 |      7.800 |      0.049 |      0.447 |
|        10 | 15:06:10.3 |      8.900 |      0.056 |      0.510 |
|        11 | 15:06:10.3 |     10.000 |      0.063 |      0.573 |
+-----------+------------+------------+------------+------------+
generator scan ['288c4df3'] (scan num: 1)



wavelength=1.0
pseudos: h=-0.0003, k=0, l=0.0628
reals: omega=0, chi=0, phi=0, tth=0.5729
auxiliaries: dy=10.0

Scan virtual axis `tth`#

RE(bp.scan([gonio.dy, gonio.tth, gonio.l], gonio.tth, -0.1, 0.5, 11))
gonio.wh()

Transient Scan ID: 2     Time: 2025-07-21 15:06:10
Persistent Unique Scan ID: 'defaaece-f675-4fb0-bce6-44845b0d0135'
New stream: 'primary'
+-----------+------------+------------+------------+------------+
|   seq_num |       time |  gonio_tth |   gonio_dy |    gonio_l |
+-----------+------------+------------+------------+------------+
|         1 | 15:06:10.5 |     -0.100 |     -1.745 |     -0.011 |
|         2 | 15:06:10.5 |     -0.040 |     -0.698 |     -0.004 |
|         3 | 15:06:10.5 |      0.020 |      0.349 |      0.002 |
|         4 | 15:06:10.5 |      0.080 |      1.396 |      0.009 |
|         5 | 15:06:10.5 |      0.140 |      2.443 |      0.015 |
|         6 | 15:06:10.5 |      0.200 |      3.491 |      0.022 |
|         7 | 15:06:10.5 |      0.260 |      4.538 |      0.029 |
|         8 | 15:06:10.5 |      0.320 |      5.585 |      0.035 |
|         9 | 15:06:10.5 |      0.380 |      6.632 |      0.042 |
|        10 | 15:06:10.5 |      0.440 |      7.680 |      0.048 |
|        11 | 15:06:10.5 |      0.500 |      8.727 |      0.055 |
+-----------+------------+------------+------------+------------+
generator scan ['defaaece'] (scan num: 2)



wavelength=1.0
pseudos: h=-0.0002, k=0, l=0.0548
reals: omega=0, chi=0, phi=0, tth=0.5
auxiliaries: dy=8.7269

Scan pseudo axis `l`#

RE(bp.scan([gonio.dy, gonio.tth, gonio.l], gonio.l, 0.01, 0.05, 11))
gonio.wh()

Transient Scan ID: 3     Time: 2025-07-21 15:06:10
Persistent Unique Scan ID: '029043a7-f32d-4232-97a1-49029e9e3e2d'
New stream: 'primary'
+-----------+------------+------------+------------+------------+
|   seq_num |       time |    gonio_l |   gonio_dy |  gonio_tth |
+-----------+------------+------------+------------+------------+
|         1 | 15:06:10.7 |      0.010 |      1.592 |      0.091 |
|         2 | 15:06:10.7 |      0.014 |      2.228 |      0.128 |
|         3 | 15:06:10.7 |      0.018 |      2.865 |      0.164 |
|         4 | 15:06:10.7 |      0.022 |      3.502 |      0.201 |
|         5 | 15:06:10.7 |      0.026 |      4.138 |      0.237 |
|         6 | 15:06:10.7 |      0.030 |      4.775 |      0.274 |
|         7 | 15:06:10.7 |      0.034 |      5.411 |      0.310 |
|         8 | 15:06:10.7 |      0.038 |      6.048 |      0.347 |
|         9 | 15:06:10.7 |      0.042 |      6.685 |      0.383 |
|        10 | 15:06:10.7 |      0.046 |      7.321 |      0.419 |
|        11 | 15:06:10.7 |      0.050 |      7.958 |      0.456 |
+-----------+------------+------------+------------+------------+
generator scan ['029043a7'] (scan num: 3)



wavelength=1.0
pseudos: h=-0.0002, k=0, l=0.05
reals: omega=0.228, chi=0, phi=-0.2741, tth=0.456
auxiliaries: dy=7.958
