Why Squash (and Mask) can change the Path¶

A Spec creates a number of Dimensions that can be set to snake. When snaking, every other run of that Dimension will run in reverse. Squash and Mask will merge Dimensions together. This may change the Path compared with the unsquashed version if the squashed Dimensions are nested within a slower Dimension, and so run more than once. This page lists the times where this is the case.

Note

The cases illustrated below will only be produced if check_path_changes=False is passed to Squash or Mask, otherwise they will fail with ValueError

Squash unsnaked axis into a snaked Dimension¶

Squashing Dimensions together will take the snake setting of the slowest moving Dimension in the squash. If this squashed Dimension is nested within another, on the second run the originally unsnaked axis will run in reverse. This would make a motor that the user had demanded to always run in one direction run in reverse, which could make the scan invalid.

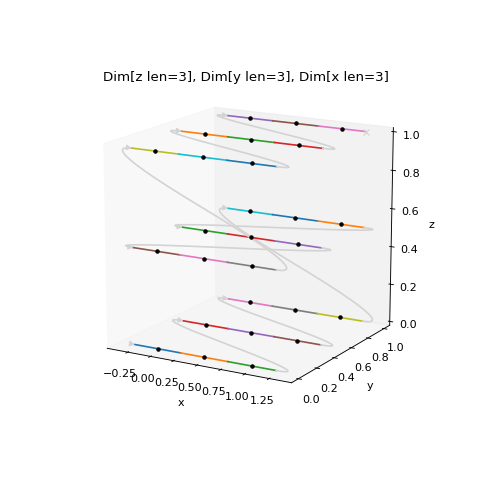

For example, consider a non-snaking x within a snaking y within z:

from scanspec.specs import Line
from scanspec.plot import plot_spec

spec = Line("z", 0, 1, 3) * ~Line("y", 0, 1, 3) * Line("x", 0, 1, 3)
plot_spec(spec)

(Source code, png, hires.png, pdf)

../_images/why-squash-can-change-path-1.png

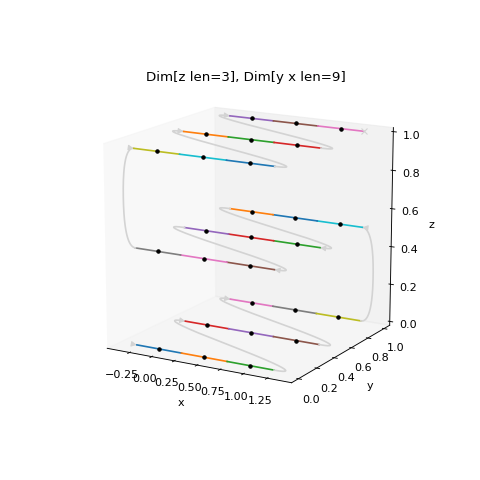

If we squash the x and y dimensions then x will run in reverse on the second run:

from scanspec.specs import Line, Squash
from scanspec.plot import plot_spec

spec = Line("z", 0, 1, 3) * Squash(
    ~Line("y", 0, 1, 3) * Line("x", 0, 1, 3), check_path_changes=False
)
plot_spec(spec)

(Source code, png, hires.png, pdf)

../_images/why-squash-can-change-path-2.png

Squash snaked axis into unsnaked odd length axis¶

A snaked axis must repeat an even number of times within a squashed Dimension in order to be able to nest this Dimension within another and keep the Path of the snaked axis. If this is not the case, the snaked axis will “jump” after each iteration of the squashed dimension.

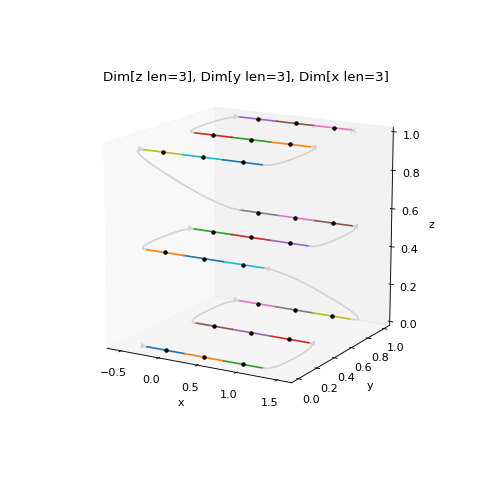

For example, consider a snaking x within an odd non-snaking y within z:

from scanspec.specs import Line
from scanspec.plot import plot_spec

spec = Line("z", 0, 1, 3) * Line("y", 0, 1, 3) * ~Line("x", 0, 1, 3)
plot_spec(spec)

(Source code, png, hires.png, pdf)

../_images/why-squash-can-change-path-3.png

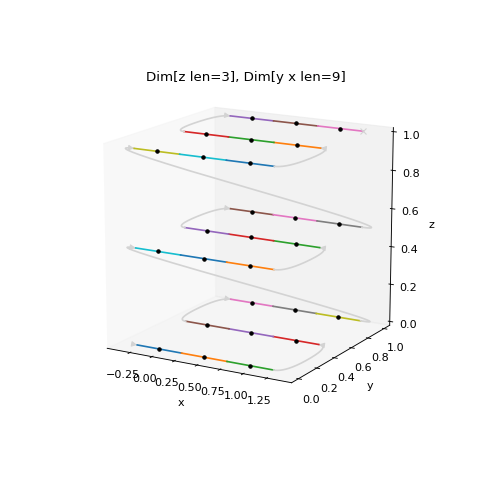

If we squash the x and y dimensions then x will jump between the first and second runs:

from scanspec.specs import Line, Squash
from scanspec.plot import plot_spec

spec = Line("z", 0, 1, 3) * Squash(
    Line("y", 0, 1, 3) * ~Line("x", 0, 1, 3), check_path_changes=False
)
plot_spec(spec)

(Source code, png, hires.png, pdf)

../_images/why-squash-can-change-path-4.png

Why this matters¶

Apart from these two cases, squashing can be considered Path invariant. This means that the detector could write data in a stack, then the data could be reshaped with a VDS into the original dimensionality. Unfortunately a negative stride is not supported in VDS, so the strategy is to squash snaked Dimensions into the Dimension above. If this changes the Path through a scan then this needs to be flagged or explicitly allowed in the Spec, otherwise the results for the user could be potentially surprising.
