scanspec¶

Specify step and flyscan Paths using combinations of:

Specs like Line or Spiral
Optionally Snaking
Zip, Product and Concat to compose
Masks with multiple Regions to restrict

Serialize the Spec rather than the expanded Path and reconstruct it on the server. It can them be iterated over like a cycler, or scan Dimensions can be produced and expanded Paths created to consume chunk by chunk.

PyPI	`pip install scanspec`
Source code	https://github.com/dls-controls/scanspec
Documentation	https://dls-controls.github.io/scanspec

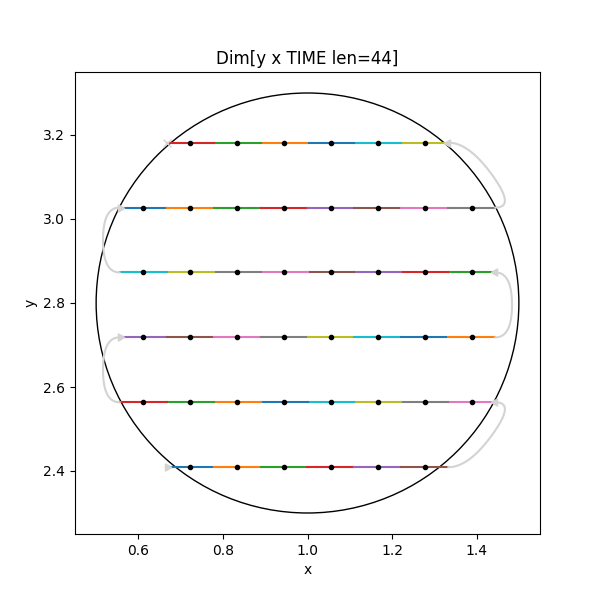

An example ScanSpec of a 2D snaked grid flyscan inside a circle spending 0.4s at each point looks like:

from scanspec.specs import Line, fly
from scanspec.regions import Circle

grid = Line(ymotor, 2.1, 3.8, 12) * ~Line(xmotor, 0.5, 1.5, 10)
spec = fly(grid, 0.4) & Circle(xmotor, ymotor, 1.0, 2.8, radius=0.5)

plot

You can then either iterate through the scan positions directly for convenience:

for positions in spec.positions():
    print(positions)
# ...
# {ymotor: 3.2813559322033896, xmotor: 0.8838383838383839, "TIME": 0.4}
# {ymotor: 3.2813559322033896, xmotor: 0.8737373737373737, "TIME": 0.4}

or create a Path from the Dimensions and consume chunks of a given length from it for performance:

from scanspec.core import Path

dims = spec.create_dimensions()
len(dims[0].shape)  # 44
dims[0].keys()  # (ymotor, xmotor, "TIME")

path = Path(dims, start=5, num=30)
chunk = path.consume(10)
chunk.positions  # {xmotor: <ndarray len=10>, ymotor: <ndarray len=10>, "TIME": <ndarray len=10>}
chunk.upper  # bounds are same dimensionality as positions
