Creating a Scan Spec

This tutorial shows how to create Scan Specs of increasing complexity, plotting the results.

Line

We’ll start with a simple one, a Line. If you enter the following code into an interactive Python terminal, it should plot a graph of a 1D line:

from scanspec.specs import Line
from scanspec.plot import plot_spec

spec = Line("x", 1, 2, 5)
plot_spec(spec)

(Source code, png, hires.png, pdf)

../_images/creating-a-spec-1.png

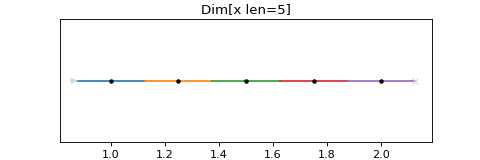

This will create a Spec with 5 points, the first centred on 1, the last centred on 2. The black dots mark the centre positions on the Path. The coloured lines mark the motion from the lower to upper bound of each point on the Path. The grey arrowhead marks the start of the scan, and the cross marks the end.

You can see the points if you create the Path yourself, then consume all its points:

>>> chunk = spec.path().consume()
>>> chunk.lower
{'x': array([0.875, 1.125, 1.375, 1.625, 1.875])}
>>> chunk.positions
{'x': array([1.  , 1.25, 1.5 , 1.75, 2.  ])}
>>> chunk.upper
{'x': array([1.125, 1.375, 1.625, 1.875, 2.125])}

The array of positions is between the lower and upper bounds, with the upper bound and lower bound of adjacent points being equal. This consumable Path object is what a scanning program should use to execute the scan described by a Spec.

Plotting from the commandline

To quickly plot Scan Specs you can use the commandline client. The input is evaluated with variables a to z defined and the output plotted.

For example, for the Line example above you would type:

$ scanspec plot 'Line(x, 1, 2, 5)'

Line with 2 axes

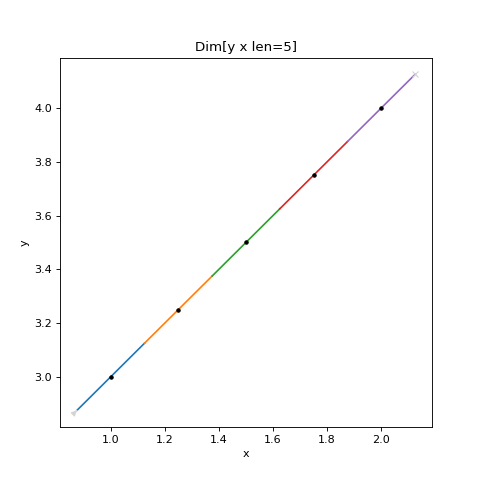

If we want to plot a Line in two axes, we can do this with Zip, or the + operator:

from scanspec.specs import Line
from scanspec.plot import plot_spec

spec = Line("y", 3, 4, 5) + Line("x", 1, 2, 5)
plot_spec(spec)

(Source code, png, hires.png, pdf)

../_images/creating-a-spec-2.png

Grid

We can make a grid by creating the Product of 2 Lines with the * operator:

from scanspec.specs import Line
from scanspec.plot import plot_spec

spec = Line("y", 3, 4, 3) * Line("x", 1, 2, 5)
plot_spec(spec)

(Source code, png, hires.png, pdf)

../_images/creating-a-spec-3.png

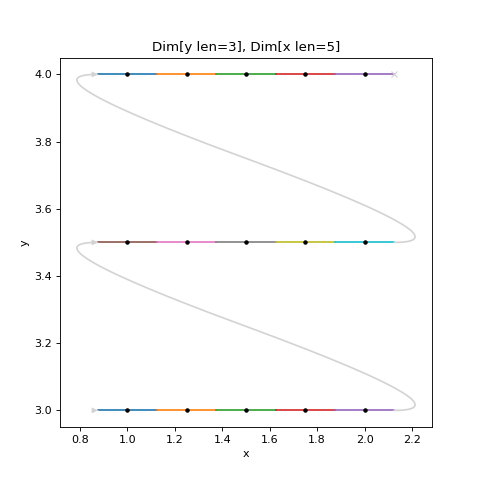

The plot shows grey arrowed lines marking the turnarounds. These are added by the plotting function as an indication of what a scanning program might do between two disjoint points, it is not a guarantee of the path that will be taken.

Examining the spec shows that it is a Product, whose length is the product of the lengths of the two input Specs:

>>> spec
Product(type='Product', outer=Line(type='Line', key='y', start=3.0, stop=4.0, num=3), inner=Line(type='Line', key='x', start=1.0, stop=2.0, num=5))
>>> len(spec.path())
15

Snaked Grid

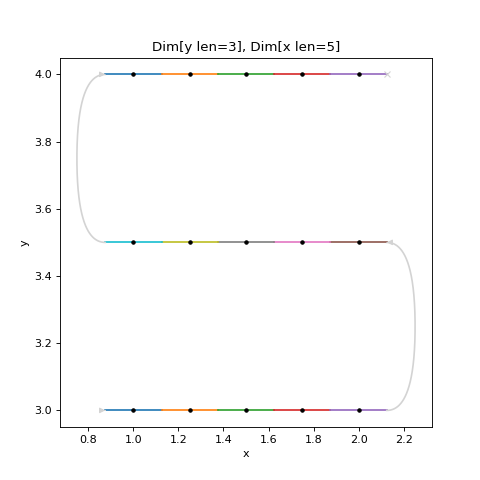

We can Snake a Spec with the ~ operator. If we apply this to the inner Spec of our grid we get:

from scanspec.specs import Line
from scanspec.plot import plot_spec

spec = Line("y", 3, 4, 3) * ~Line("x", 1, 2, 5)
plot_spec(spec)

(Source code, png, hires.png, pdf)

../_images/creating-a-spec-4.png

Masking with Regions

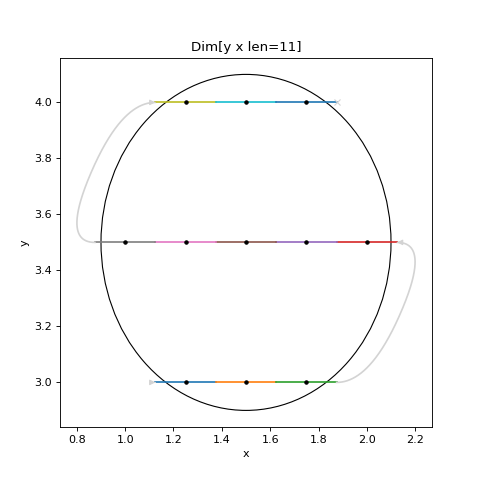

We can apply a Mask to only include positions within a given Region using the & operator:

from scanspec.specs import Line
from scanspec.regions import Circle
from scanspec.plot import plot_spec

spec = Line("y", 3, 4, 3) * ~Line("x", 1, 2, 5) & Circle("x", "y", 1.5, 3.5, 0.6)
plot_spec(spec)

(Source code, png, hires.png, pdf)

../_images/creating-a-spec-5.png

Masking with Multiple Regions

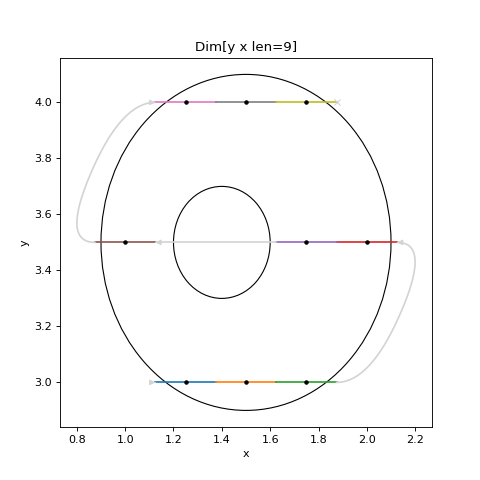

We can apply set-like operators to Masked Specs:

For example:

from scanspec.specs import Line
from scanspec.regions import Circle
from scanspec.plot import plot_spec

spec = Line("y", 3, 4, 3) * ~Line("x", 1, 2, 5) & Circle("x", "y", 1.5, 3.5, 0.6) - Circle("x", "y", 1.4, 3.5, 0.2)
plot_spec(spec)

(Source code, png, hires.png, pdf)

../_images/creating-a-spec-6.png

Conclusion

This tutorial has demonstrated some Specs and combinations of them. From here you may like to read How to Iterate a Spec to see how a scanning system could use these Specs and How to Serialize and Deserialize a Spec to see how you might send one to such a scanning system.
