How to Choose the Default forward() Solution

The forward() method may return multiple valid real-axis positions for a given set of pseudo-axis coordinates. A solution picker function selects one solution from that list.

The four-stage forward pipeline

Computing a single motor position from pseudo-axis coordinates (e.g. h, k, l) involves four distinct stages across three layers of hklpy2. This guide covers Stage 4 — the solution picker.

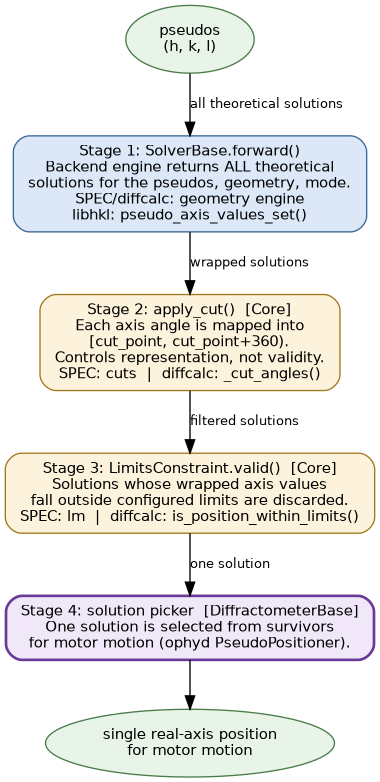

Four-stage forward() pipeline in hklpy2 (equivalent stages in SPEC and diffcalc shown in parentheses).

The number of solutions entering Stage 4 depends on the backend Solver’s capabilities. Some engines analytically enumerate all mathematically valid solutions; others return only one. A single-element list is valid. See also forward() Contract.

This guide explains the built-in pickers, how to switch between them, and how to write a custom one.

Built-in solution pickers

Two pickers are provided:

Function	Behavior
pick_first_solution() (default)	Returns the first solution in the list as supplied by the solver.
pick_closest_solution()	Returns the solution whose real-axis values are closest (RMS distance) to the current motor positions.

The default is pick_first_solution().

Check the current picker

>>> e4cv._forward_solution
<function pick_first_solution at 0x...>

Switch to pick_closest_solution at runtime

Assign directly to _forward_solution:

>>> from hklpy2.misc import pick_closest_solution
>>> e4cv._forward_solution = pick_closest_solution

Switch back:

>>> from hklpy2.misc import pick_first_solution
>>> e4cv._forward_solution = pick_first_solution

Set the picker at creation time

Pass forward_solution_function as a dotted name string to creator():

>>> import hklpy2
>>> e4cv = hklpy2.creator(
...     name="e4cv",
...     forward_solution_function="hklpy2.misc.pick_closest_solution",
... )

Or pass a callable directly to __init__ when subclassing:

>>> from hklpy2.misc import pick_closest_solution
>>> e4cv = MyDiffractometerClass(
...     "",
...     name="e4cv",
...     forward_solution_function=pick_closest_solution,
... )

Write a custom picker

A picker function must accept two arguments and return one solution:

from typing import NamedTuple

def my_picker(position: NamedTuple, solutions: list[NamedTuple]) -> NamedTuple:
    """Return the solution with the smallest omega value."""
    from hklpy2.misc import NoForwardSolutions
    if not solutions:
        raise NoForwardSolutions("No solutions.")
    return min(solutions, key=lambda s: abs(s.omega))

Assign it at runtime or at creation:

>>> e4cv._forward_solution = my_picker

>>> e4cv = hklpy2.creator(
...     name="e4cv",
...     forward_solution_function="mymodule.my_picker",
... )

The picker interface

All pickers must follow this interface:

positionnamed tuple

The current real-axis position of the diffractometer (e.g. RealPosition(omega=..., chi=..., phi=..., tth=...)).

solutionslist of named tuples

All valid solutions returned by forward(). Each element is a named tuple with the same fields as position.

Returns: one named tuple from solutions.

Raises: NoForwardSolutions if solutions is empty.

See also

pick_first_solution(), pick_closest_solution() — built-in pickers.

_forward_solution — the attribute that holds the active picker.

forward() — returns all solutions before the picker is applied.
