How to Perform an Azimuthal (ψ) Scan#

An azimuthal scan (also called a ψ scan) rotates the sample about the scattering vector Q while holding the reciprocal-space position (h, k, l) fixed. This probes how diffracted intensity varies with sample orientation around a Bragg reflection — useful for surface diffraction, multiple-beam diffraction studies, and verifying crystal alignment.

Solver-specific feature

Azimuthal scanning relies on the psi_constant mode provided by the hkl_soleil solver. Not all solvers or geometries support this mode. Geometries that include psi_constant in their hkl engine include: E4CV, E4CH, K4CV, E6C, K6C, APS POLAR, SOLEIL MARS, PETRA3 P23 4C, and PETRA3 P23 6C. Check Diffractometers for your geometry.

See also

hkl_soleil E6C psi axis — E6C worked demonstration including the inverse case (computing ψ from real motor positions).

Use E4CV’s q calculation engine — how to select a calculation engine at creation time.

How to Use Constraints — how to set axis limits and cut points.

How to Work with a Diffractometer — how to define and orient a diffractometer.

Prerequisites#

  • A diffractometer using the hkl_soleil solver with a geometry that supports psi_constant mode.

  • A crystal sample with its lattice defined and a computed UB matrix.

  • A reference reflection hkl₂ that is not parallel to the scan reflection hkl — it defines the direction of ψ = 0.

  • A running bluesky RunEngine.

Setup#

Create a simulated E4CV diffractometer, define a silicon sample, add two orientation reflections, and compute the UB matrix.

The orientation reflections use positive angles appropriate for a typical laboratory diffractometer with Cu Kα radiation (λ = 1.54 Å):

#

h

k

l

ω

χ

φ

2θ

1

1

1

1

14.22°

35.26°

0°

28.44°

2

2

2

0

23.65°

90.00°

0°

47.30°


import matplotlib.pyplot as plt
import numpy as np

import bluesky
import databroker
from bluesky.callbacks.best_effort import BestEffortCallback
from ophyd.sim import noisy_det

import hklpy2
from hklpy2.user import (
    add_sample,
    calc_UB,
    set_diffractometer,
    setor,
    wh,
)

RE = bluesky.RunEngine()
cat = databroker.temp().v2
RE.subscribe(cat.v1.insert)
bec = BestEffortCallback()
RE.subscribe(bec)
bec.disable_plots()

fourc = hklpy2.creator(name="fourc", geometry="E4CV", solver="hkl_soleil")
set_diffractometer(fourc)

add_sample("silicon", a=hklpy2.SI_LATTICE_PARAMETER)

# Two orientation reflections for silicon at wavelength 1.54 Å (Cu Kα)
r1 = setor(1, 1, 1, omega=14.22, chi=35.26, phi=0, tth=28.44, wavelength=1.54)
r2 = setor(2, 2, 0, omega=23.65, chi=90.00, phi=0, tth=47.30, wavelength=1.54)
calc_UB(r1, r2)
wh()

wavelength=1.54
pseudos: h=0, k=0, l=0
reals: omega=0, chi=0, phi=0, tth=0

Apply realistic motor constraints#

Restrict the real axes to physically accessible angles. Without these constraints the solver may return solutions with negative omega or tth, which would place the detector below the floor on a real instrument.

The choice of reference reflection hkl₂ and the phi cut point together determine whether phi travels monotonically across the full ψ range. Using hkl₂ = (1, -1, 0) with a phi cut point of -180° causes phi to decrease smoothly from 0° to -180° as ψ increases from 0° to 180° — no discontinuity.

fourc.core.constraints["omega"].limits = 0, 90
fourc.core.constraints["tth"].limits = 0, 180
fourc.core.constraints["chi"].limits = 0, 180
# Set phi cut point so phi decreases monotonically from 0° to -180°
fourc.core.constraints["phi"].cut_point = -180
fourc.core.constraints["phi"].limits = -180, 0
print(fourc.core.constraints)

['0.0 <= omega <= 90.0 [cut=-180.0]', '0.0 <= chi <= 180.0 [cut=-180.0]', '-180.0 <= phi <= 0.0 [cut=-180.0]', '0.0 <= tth <= 180.0 [cut=-180.0]']

Switch to psi_constant mode#

The psi_constant mode keeps ψ fixed at a user-supplied value while forward() finds real-axis angles for any requested (h, k, l).

This mode requires four extra parameters:

Extra

Meaning

h2, k2, l2

Miller indices of the reference reflection that defines ψ = 0

psi

The azimuthal angle (degrees) to hold constant

The reference reflection (h2, k2, l2) must not be parallel to the scan reflection (h, k, l) — their cross product must be non-zero, or ψ is undefined.

print("Available modes:", fourc.core.modes)
fourc.core.mode = "psi_constant"
print("Selected mode:", fourc.core.mode)
print("Extra parameters:", list(fourc.core.extras.keys()))

Available modes: ['bissector', 'constant_omega', 'constant_chi', 'constant_phi', 'double_diffraction', 'psi_constant']
Selected mode: psi_constant
Extra parameters: ['h2', 'k2', 'l2', 'psi']

# Scan the (2, 2, 0) reflection.
# Reference reflection hkl2 = (1, -1, 0) gives monotonic phi across the full psi range.
fourc.core.extras = dict(h2=1, k2=-1, l2=0, psi=0)
print("Extras:", fourc.core.extras)

Extras: {'h2': 1, 'k2': -1, 'l2': 0, 'psi': 0}

Verify single-point forward calculations#

Before running a scan, check that forward() returns valid solutions at a few ψ values across the intended range. This catches constraint or geometry problems before committing to a full scan.

Note that tth remains constant throughout (|Q| is fixed), while omega and chi vary as the diffractometer adjusts to maintain the Bragg condition at each azimuthal angle. Only phi travels monotonically from 0° to -180° without discontinuity, confirming that the chosen reference reflection and phi cut point are correct.

print(f"{'psi':>6}  {'omega':>10}  {'chi':>10}  {'phi':>10}  {'tth':>10}")
print("-" * 55)
for psi in np.linspace(0, 180, 7):
    fourc.core.extras = dict(h2=1, k2=-1, l2=0, psi=psi)
    try:
        sol = fourc.forward(2, 2, 0)
        print(
            f"{psi:6.1f}  {sol.omega:10.4f}  {sol.chi:10.4f}"
            f"  {sol.phi:10.4f}  {sol.tth:10.4f}"
        )
    except Exception as exc:
        print(f"{psi:6.1f}  *** no solution: {exc}")

   psi       omega         chi         phi         tth
-------------------------------------------------------
   0.0     23.6413     70.5244      0.0000     47.2826
  30.0     33.6687     73.2176    -31.4828     47.2826
  60.0     40.6691     80.4038    -61.4398     47.2826
  90.0     43.1169     90.0000    -90.0000     47.2826
 120.0     40.6691     99.5962   -118.5602     47.2826
 150.0     33.6687    106.7824   -148.5172     47.2826
 180.0     23.6413    109.4756   -180.0000     47.2826

Run the azimuthal scan#

Use scan_extra() to sweep ψ over a range while holding (h, k, l) fixed.

Note

scan_extra scans an extra parameter of the solver engine, not a pseudo axis. The pseudos keyword fixes (h, k, l) throughout the scan. The extras keyword sets h2, k2, l2 (the reference reflection); psi is supplied as the scanned axis and overrides any value in extras.

(uid,) = RE(
    fourc.scan_extra(
        [noisy_det, fourc],
        "psi",
        0,
        180,  # scan psi from 0° to 180°
        num=7,
        pseudos=dict(h=2, k=2, l=0),  # hold (2, 2, 0) fixed
        extras=dict(h2=1, k2=-1, l2=0),  # reference reflection (1, -1, 0)
    )
)
print("Run uid:", uid)

Transient Scan ID: 1     Time: 2026-04-15 00:22:52
Persistent Unique Scan ID: 'b57b4665-2135-47e6-b720-8d25e6a93d95'
New stream: 'primary'
+-----------+------------+------------+-----------------------+-------------------+------------+------------+------------+-------------+------------+------------+------------+------------------+
|   seq_num |       time |  noisy_det | fourc_beam_wavelength | fourc_beam_energy |    fourc_h |    fourc_k |    fourc_l | fourc_omega |  fourc_chi |  fourc_phi |  fourc_tth | fourc_extras_psi |
+-----------+------------+------------+-----------------------+-------------------+------------+------------+------------+-------------+------------+------------+------------+------------------+
|         1 | 00:22:52.4 |      0.986 |                 1.540 |             8.051 |      2.000 |      2.000 |     -0.000 |      23.641 |     70.524 |     -0.000 |     47.283 |            0.000 |
|         2 | 00:22:52.5 |      1.094 |                 1.540 |             8.051 |      2.000 |      2.000 |      0.000 |      33.669 |     73.218 |    -31.483 |     47.283 |           30.000 |
|         3 | 00:22:52.5 |      1.088 |                 1.540 |             8.051 |      2.000 |      2.000 |      0.000 |      40.669 |     80.404 |    -61.440 |     47.283 |           60.000 |
|         4 | 00:22:52.5 |      1.057 |                 1.540 |             8.051 |      2.000 |      2.000 |      0.000 |      43.117 |     90.000 |    -90.000 |     47.283 |           90.000 |
|         5 | 00:22:52.5 |      0.934 |                 1.540 |             8.051 |      2.000 |      2.000 |      0.000 |      40.669 |     99.596 |   -118.560 |     47.283 |          120.000 |
|         6 | 00:22:52.5 |      0.908 |                 1.540 |             8.051 |      2.000 |      2.000 |      0.000 |      33.669 |    106.782 |   -148.517 |     47.283 |          150.000 |

|         7 | 00:22:52.5 |      0.974 |                 1.540 |             8.051 |      2.000 |      2.000 |      0.000 |      23.641 |    109.476 |   -180.000 |     47.283 |          180.000 |

+-----------+------------+------------+-----------------------+-------------------+------------+------------+------------+-------------+------------+------------+------------+------------------+
Plan  ['b57b4665'] (scan num: 1)

Run uid: b57b4665-2135-47e6-b720-8d25e6a93d95

Alternative: use scan_psi() convenience plan#

The scan_psi() convenience plan wraps the mode-selection and scan_extra ceremony into a single call. It auto-detects the psi-capable mode and the psi extra axis name from the diffractometer’s solver, and restores the prior mode on exit.

Note

The mode= and psi_axis= keyword arguments are available as escape hatches when auto-detection is ambiguous (e.g. on E6C where both "psi_constant" and "psi_constant_vertical" are available).

from hklpy2 import scan_psi

# Restore bissector mode first to show scan_psi switches mode automatically.
fourc.core.mode = "bissector"
print("Mode before scan_psi:", fourc.core.mode)

(uid2,) = RE(
    scan_psi(
        [noisy_det, fourc],
        fourc,
        h=2,
        k=2,
        l=0,
        hkl2=(1, -1, 0),
        psi_start=0,
        psi_stop=180,
        num=7,
    )
)
print("Run uid:", uid2)
print("Mode after scan_psi:", fourc.core.mode)  # restored to bissector

Inspect the scan results#

run = cat[uid]
ds = run.primary.read()
print(
    ds[
        [
            "fourc_extras_psi",
            "fourc_phi",
            "fourc_chi",
            "fourc_omega",
            "fourc_h",
            "fourc_k",
            "fourc_l",
        ]
    ]
)

/home/beams/JEMIAN/.conda/envs/hklpy2/lib/python3.13/site-packages/databroker/intake_xarray_core/base.py:23: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
  'dims': dict(self._ds.dims),

<xarray.Dataset> Size: 448B
Dimensions:           (time: 7)
Coordinates:
  * time              (time) float64 56B 1.776e+09 1.776e+09 ... 1.776e+09
Data variables:
    fourc_extras_psi  (time) float64 56B 0.0 30.0 60.0 90.0 120.0 150.0 180.0
    fourc_phi         (time) float64 56B -1.112e-06 -31.48 ... -148.5 -180.0
    fourc_chi         (time) float64 56B 70.52 73.22 80.4 90.0 99.6 106.8 109.5
    fourc_omega       (time) float64 56B 23.64 33.67 40.67 ... 40.67 33.67 23.64
    fourc_h           (time) float64 56B 2.0 2.0 2.0 2.0 2.0 2.0 2.0
    fourc_k           (time) float64 56B 2.0 2.0 2.0 2.0 2.0 2.0 2.0
    fourc_l           (time) float64 56B -2.308e-09 1.876e-09 ... 3e-12

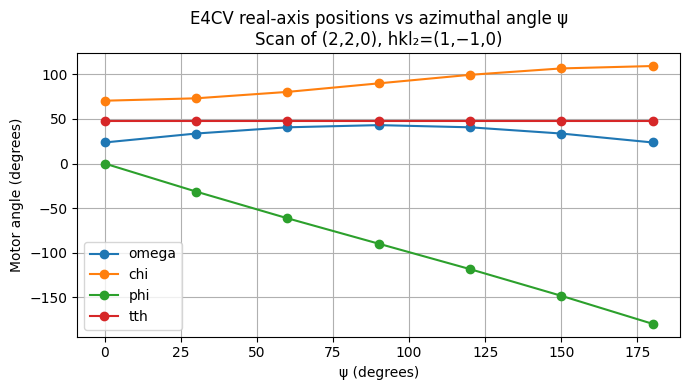

Plot motor angles vs ψ#

Plot the real-axis positions recorded during the scan as a function of ψ. Only tth is constant throughout (|Q| is fixed); omega and chi vary as the diffractometer maintains the Bragg condition at each azimuthal angle, and phi carries the primary azimuthal rotation.

psi = ds["fourc_extras_psi"].values

fig, ax = plt.subplots(figsize=(7, 4))
for motor in ("fourc_omega", "fourc_chi", "fourc_phi", "fourc_tth"):
    label = motor.removeprefix("fourc_")
    ax.plot(psi, ds[motor].values, marker="o", label=label)

ax.set_xlabel("ψ (degrees)")
ax.set_ylabel("Motor angle (degrees)")
ax.set_title(
    "E4CV real-axis positions vs azimuthal angle ψ\nScan of (2,2,0), hkl₂=(1,−1,0)"
)
ax.legend()
ax.grid(True)
plt.tight_layout()
plt.show()
../_images/9c5efbe843f27be646208149fe2e450051132503120216adba43e32c1ced767e.png

The table confirms:

  • fourc_extras_psi steps evenly from 0° to 180°.

  • fourc_phi decreases monotonically from 0° to -180° — no discontinuity.

  • fourc_tth remains constant — |Q| is fixed.

  • fourc_omega and fourc_chi vary as the diffractometer maintains the Bragg condition.

  • fourc_h, fourc_k, fourc_l remain at (2, 2, 0) throughout.

Choosing a reference reflection to avoid discontinuities#

The choice of reference reflection hkl₂ determines which real axis moves during the scan and how it behaves. A poor choice can produce a 360° wrap-around discontinuity mid-scan (e.g. phi jumping from -180° to +180°) that causes the motor to slew the long way around.

To check for discontinuities before scanning, run the verification loop above over the full ψ range and inspect the phi differences between adjacent steps. If any step exceeds ~180°, change hkl₂ and/or adjust the phi cut point and limits until the travel is monotonic.

General guidance:

  • Choose hkl₂ perpendicular to both hkl and the rotation axis you want to move primarily.

  • Set the phi cut point to the starting phi value (or slightly below it) so the full range falls within [cut, cut+360).

  • Verify with forward() before running the scan.

Common pitfalls#

Parallel hkl and hkl2 : If the scan reflection and the reference reflection are parallel (e.g. (1,0,0) and (2,0,0)), their cross product is zero and ψ is undefined. The solver returns no solutions. Choose a reference reflection that is not parallel to the scan reflection.

Phi discontinuity mid-scan : If phi jumps by ~360° at some ψ value, the motor will slew the long way around. Fix this by choosing a different hkl₂ and/or adjusting the phi cut point and limits. See the section above.

Constraint limits blocking solutions : If forward() fails at some ψ values, a real axis may be hitting its limit at those azimuthal angles. Widen the limits or choose a different starting orientation. See How to Use Constraints.

Unrealistic motor angles without constraints : Without constraints, the solver may return solutions with negative omega or tth. Always set realistic axis limits before scanning.

Solver-specific feature : psi_constant mode is provided by the hkl_soleil solver. If your diffractometer uses a different solver (e.g. th_tth), this mode is not available. Check fourc.core.modes to see what is supported.

Engine is immutable : The hkl engine (used here) cannot be changed after the diffractometer is created. To read the current ψ from real motor positions (the inverse case), create a second diffractometer instance with solver_kwargs=dict(engine="psi"). See hkl_soleil E6C psi axis for a complete example.
